Architectural/Aluminium Section Rubber Profiles
Precision-extruded elastomeric profiles that fit aluminium channels/frames, providing sealing, cushioning, glazing retention and weather protection.

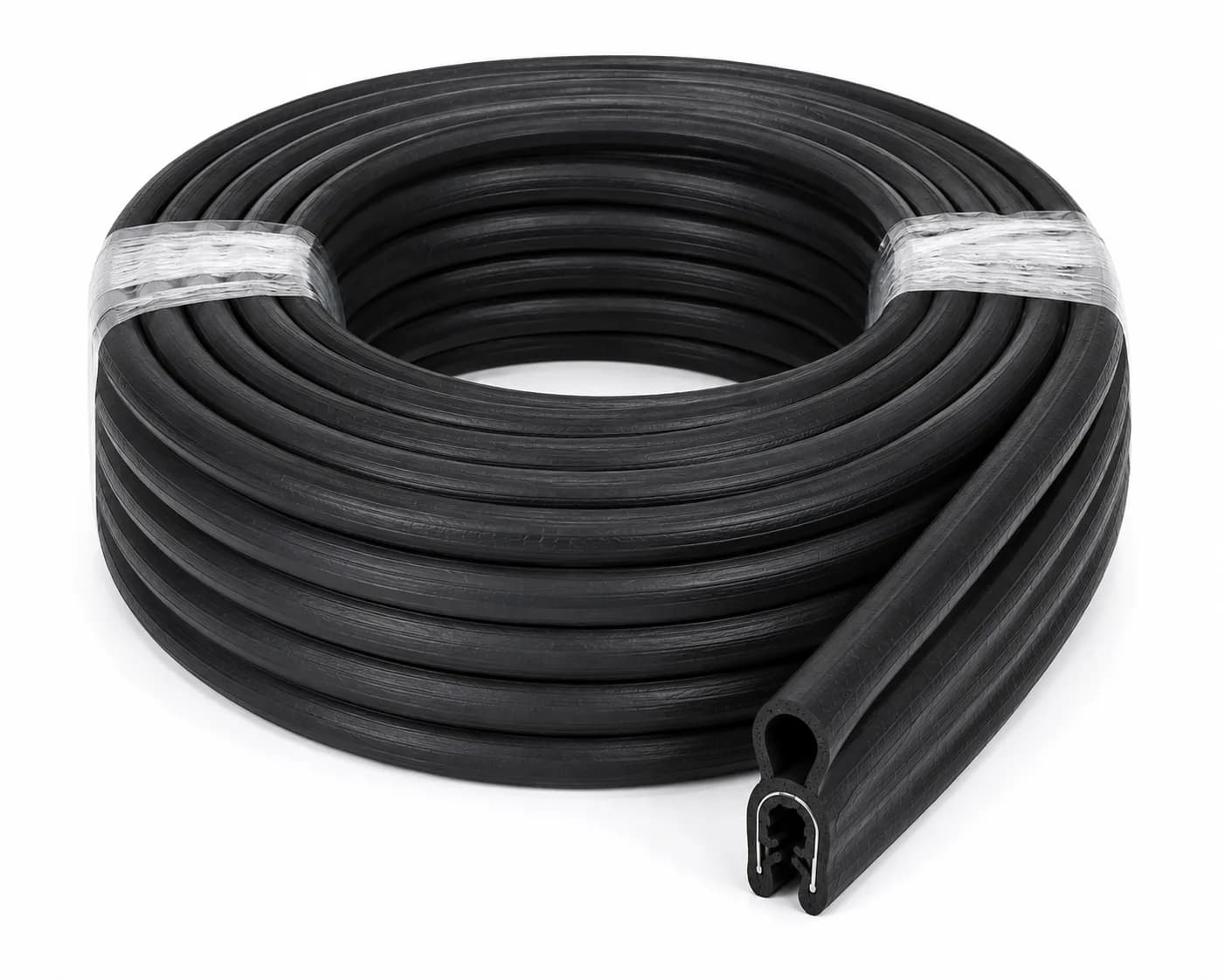

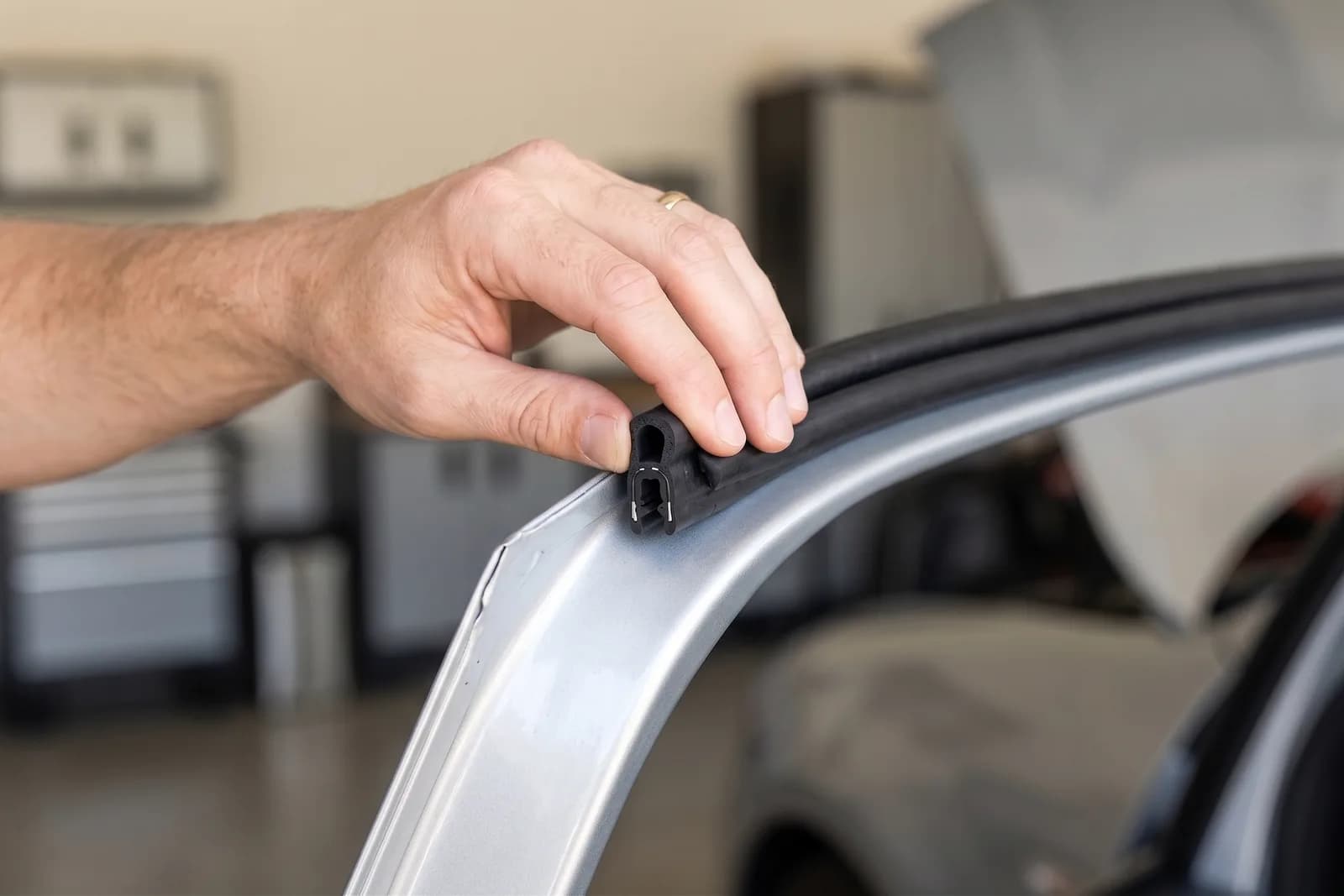

Trim Rubbers (Edge Trim Rubbers)
Extruded edge-protection profiles that cover exposed sheet-metal edges, many with a self-gripping metal carrier and compressible sealing bulb.
Temperature Resistant
Specified Hardness
Weather Resistant
Made To Your Requirement
The image shows one example from this range. We manufacture to the size, shape, hardness and colour you need — send us a drawing or a sample piece and we will match it.
Product Specifications
Material
- Material
- EPDM
- Construction

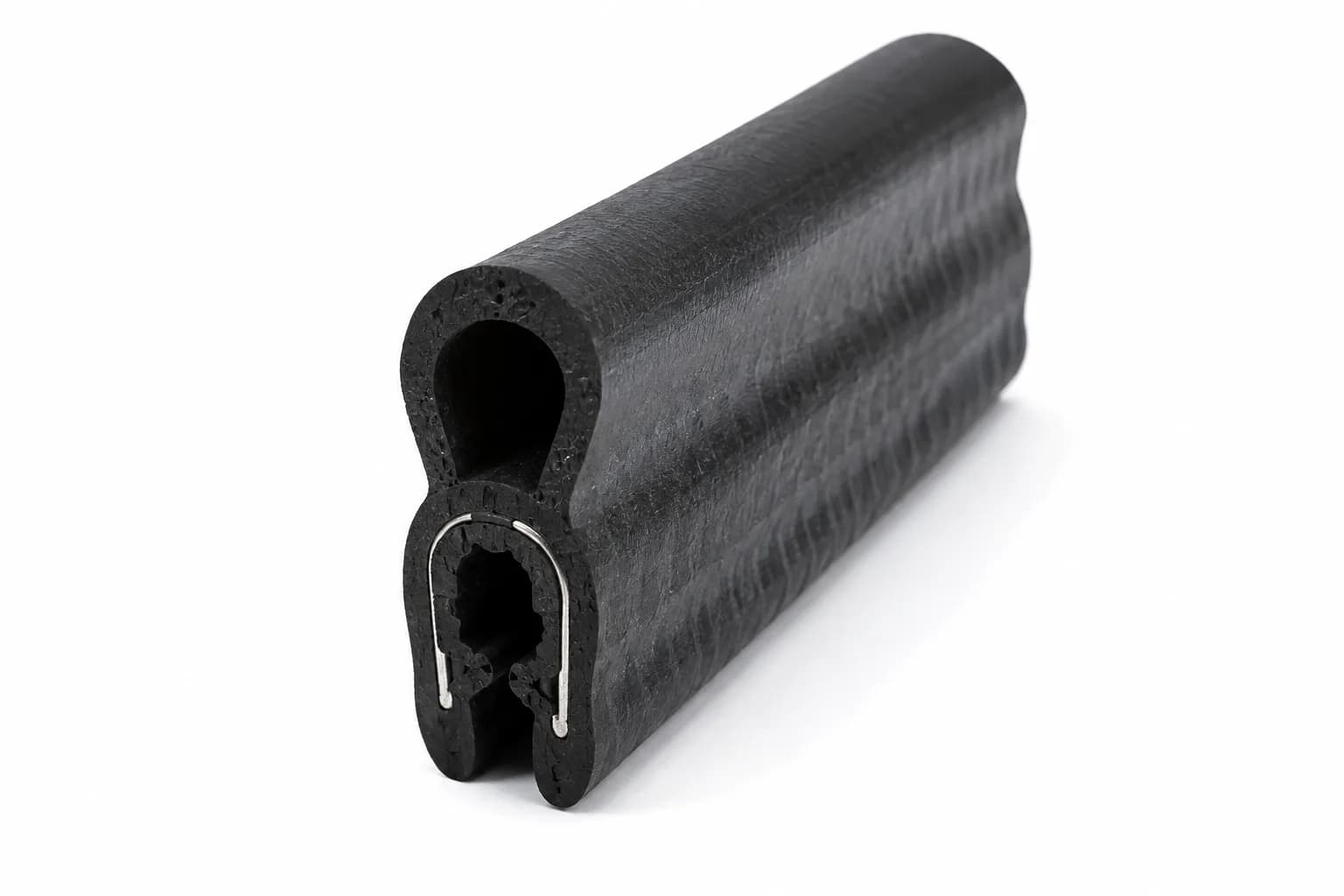

- Extruded U-channel with steel reinforcement + sealing bulb
Physical properties
- Hardness
- 60+/-5 Shore A
Dimensions
- Panel Thickness
- 1.0-5.0 mm
- Bulb Diameter
- 8/10/12/15/18/20 mm
Performance
- Operating Temp
- -40 to 120C
- Weather/UV/Ozone/Water Resistance
- Excellent
- Oil Resistance
- Fair
General
- Colour
- Black (std)
Specifications are typical values for the standard compound and are not a guarantee of performance in your application. Tolerances, hardness and colour can be adjusted to your requirement — please confirm critical values with our technical team before ordering.
Applications
- Electrical control panels & switchgear
- Generator acoustic canopies
- Industrial cabinets & enclosures
- HVAC equipment
- Marine access panels
- Sheet-metal edge protection
Tax Classification
- HSN Code
- 4008
- GST
- 18%
Enquire about Trim Rubbers (Edge Trim Rubbers)
Tell us the section, hardness and quantity you need. Our team will come back to you with a firm rate and lead time within one working day.
