Crusher Rubber Profiles
Heavy-duty extruded rubber sealing profiles for crushers, vibrating screens and conveyors, providing impact absorption, vibration isolation and dust-leakage control.
Temperature Resistant
Specified Hardness
High Durability
Weather Resistant
Made To Your Requirement

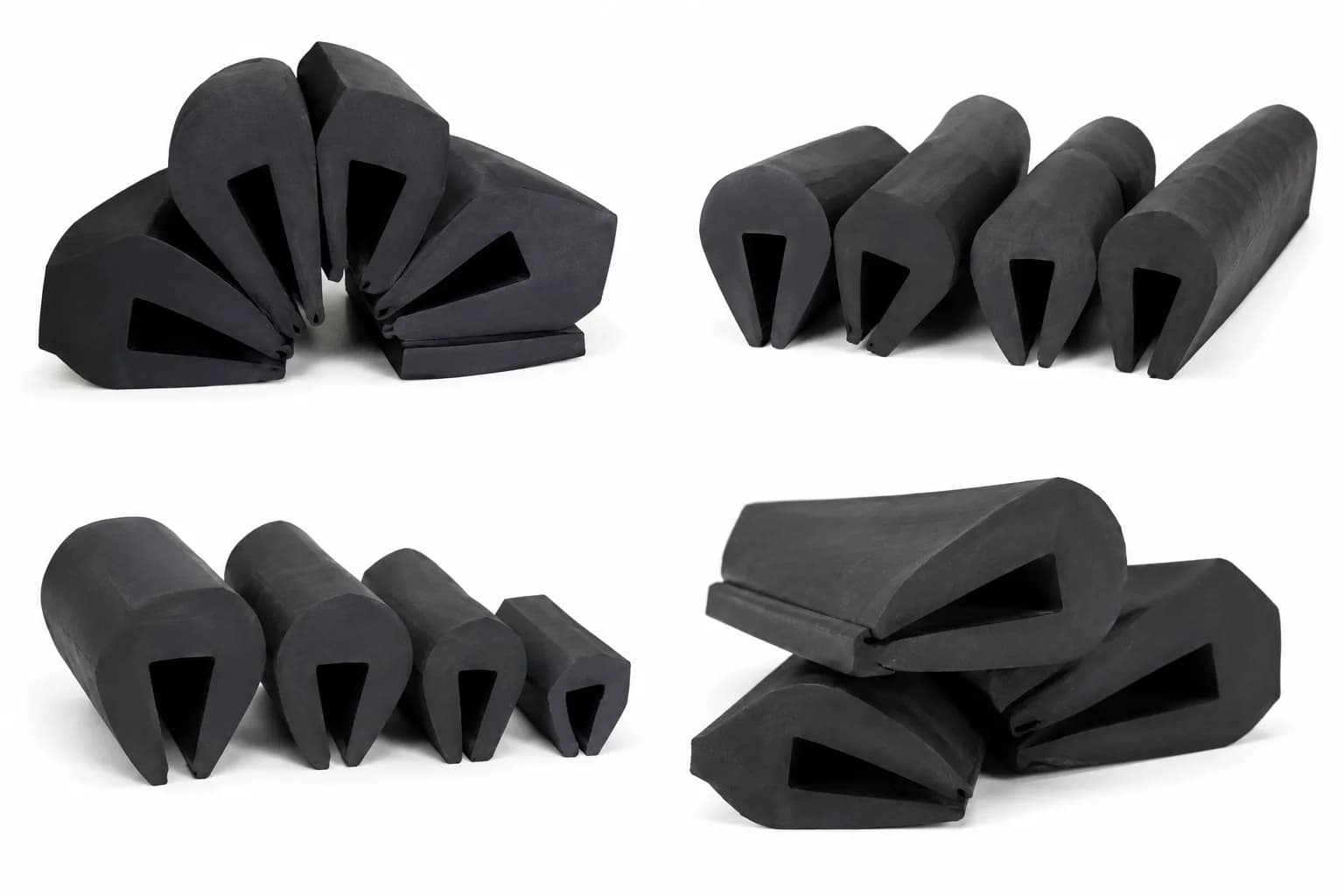

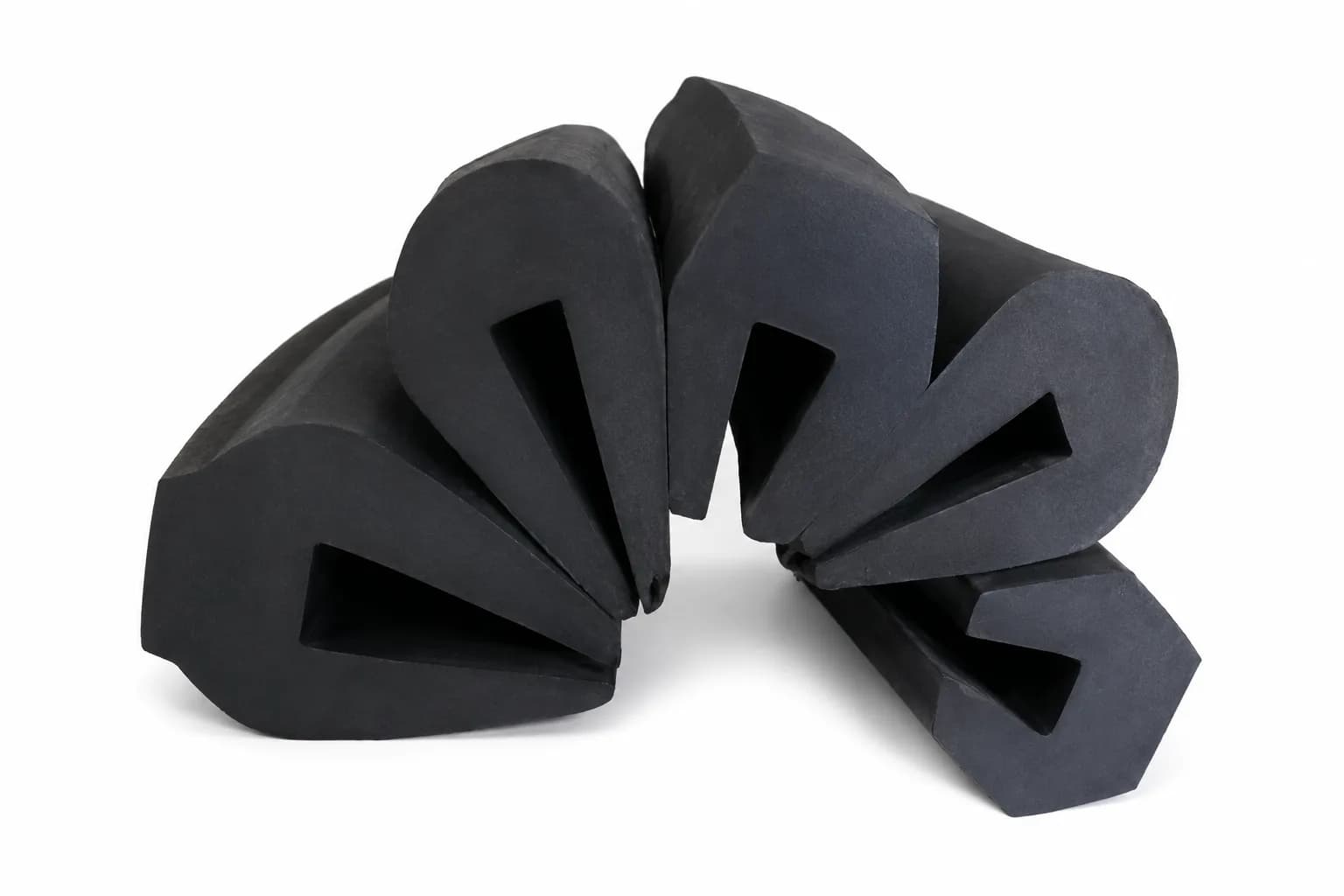

The image shows one example from this range. We manufacture to the size, shape, hardness and colour you need — send us a drawing or a sample piece and we will match it.
Product Specifications
Material
- Material
- EPDM/Natural Rubber/NR-SBR blend
Physical properties
- Hardness
- 55-75 Shore A
- Density
- 1.6-2.2 g/cm3
- Tensile
- 10-18 MPa
- Elongation
- 300-500%
Performance
- Abrasion Resistance
- Excellent
- Operating Temp
- -30 to 100C
- Weather Resistance
- Excellent
General
- Colour
- Black
Specifications are typical values for the standard compound and are not a guarantee of performance in your application. Tolerances, hardness and colour can be adjusted to your requirement — please confirm critical values with our technical team before ordering.
Applications

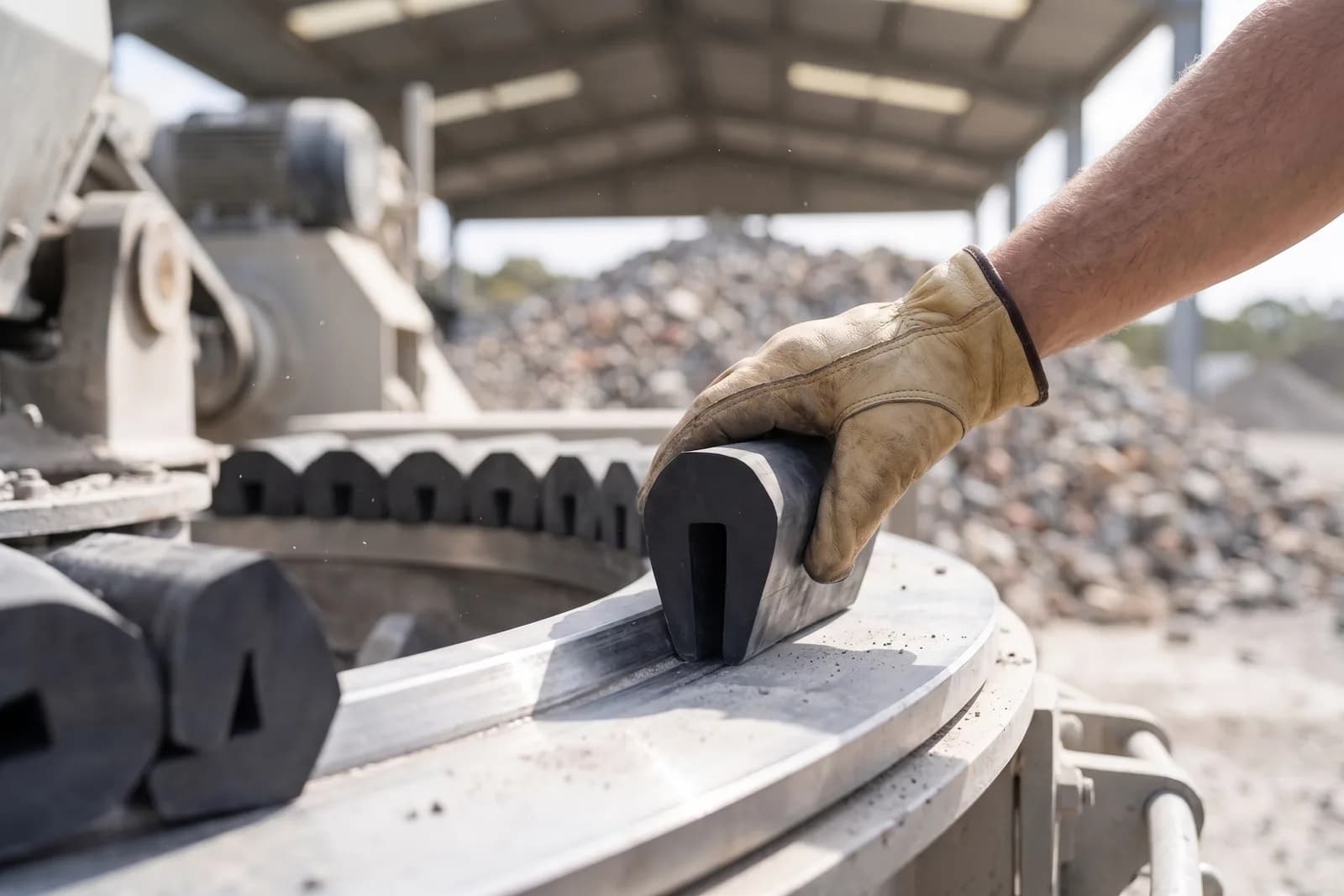

- Jaw/cone/impact crushers
- Vibrating screens
- Conveyor transfer points
- Hoppers & chutes
- Mining and quarry equipment
Tax Classification
- HSN Code
- 4008
- GST
- 18%
Enquire about Crusher Rubber Profiles
Tell us the section, hardness and quantity you need. Our team will come back to you with a firm rate and lead time within one working day.
