Architectural/Aluminium Section Rubber Profiles
Precision-extruded elastomeric profiles that fit aluminium channels/frames, providing sealing, cushioning, glazing retention and weather protection.

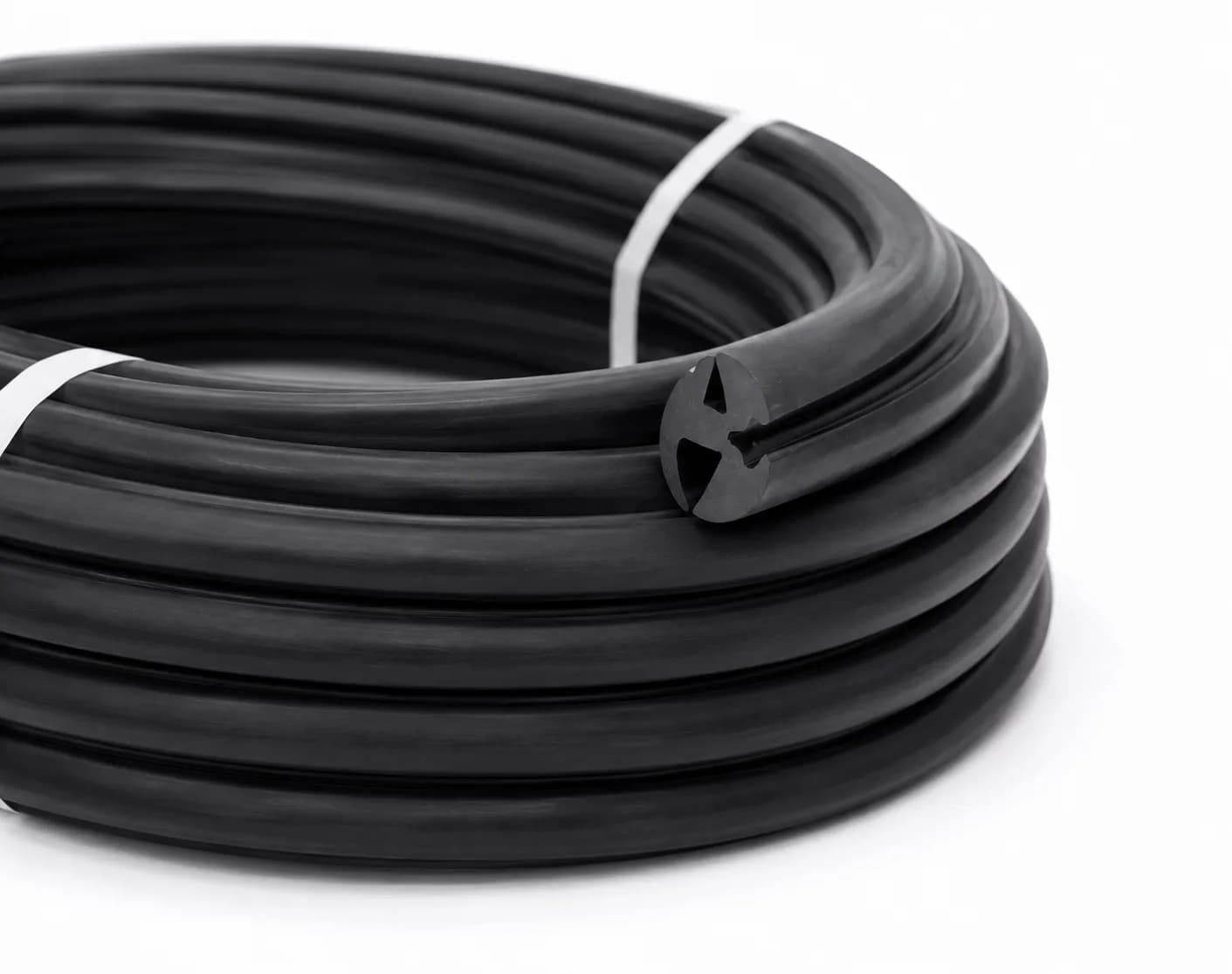

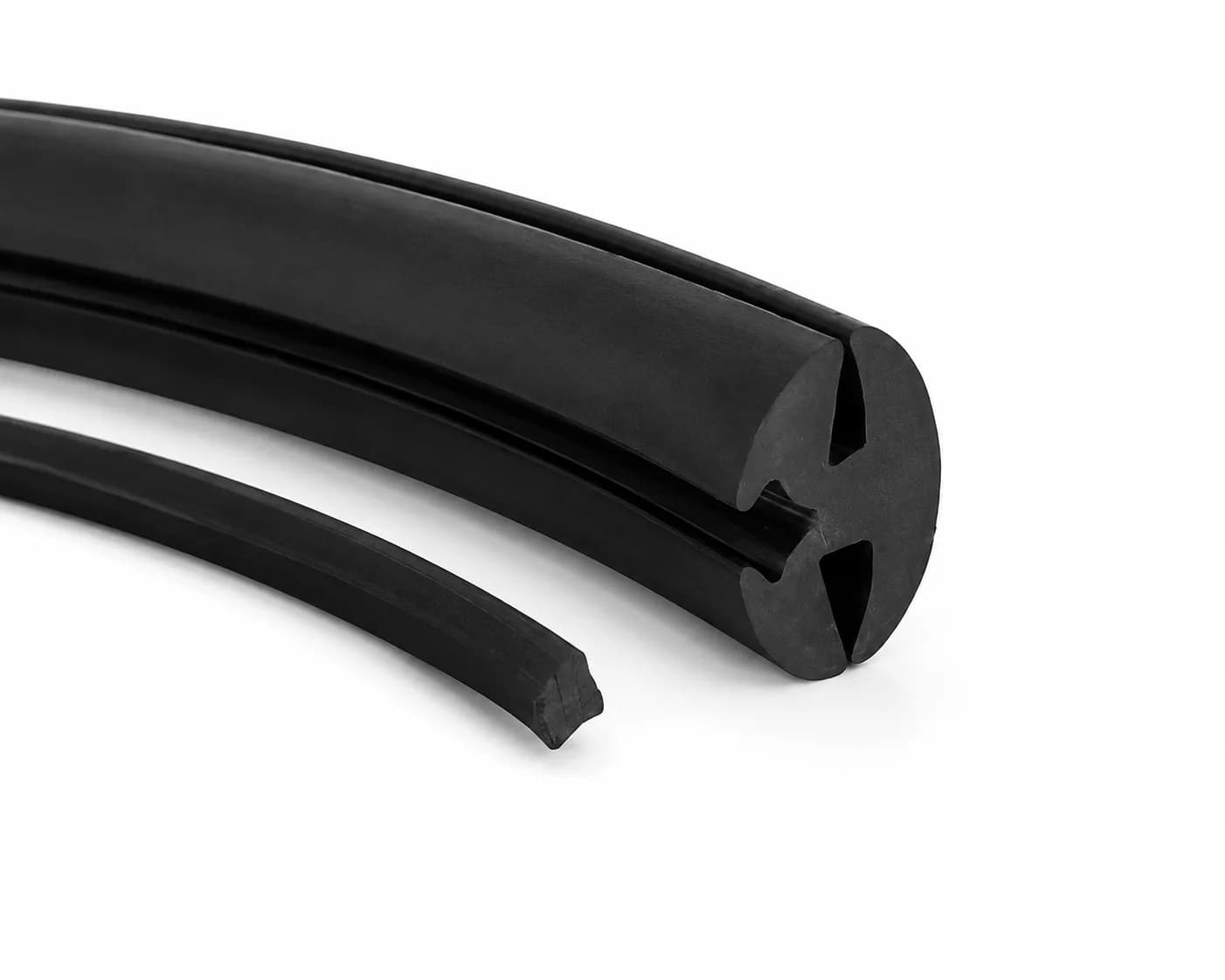

Glazing Rubber Profiles
Best sellerExtruded EPDM glazing profiles (wedge, bubble, U-channel, locking, beading, pressure, fin and corner gaskets) for glass retention and weather sealing.
Temperature Resistant
Specified Hardness
Made To Your Requirement
The image shows one example from this range. We manufacture to the size, shape, hardness and colour you need — send us a drawing or a sample piece and we will match it.
Product Specifications
Material
- Material
- EPDM
Physical properties
- Hardness
- 55-75+/-5 Shore A (custom 50-80)
- Density
- 1.6-2.2 g/cm3
- Tensile
- >=7 MPa
- Elongation
- >=250%
- Compression Set
- <=25%
Performance
- Operating Temp
- -40 to 120C
General
- Colour
- Black (std), Grey/White available
Dimensions
- Glass thickness
- 4-12 mm
- Groove width
- 3-20 mm
Specifications are typical values for the standard compound and are not a guarantee of performance in your application. Tolerances, hardness and colour can be adjusted to your requirement — please confirm critical values with our technical team before ordering.
Applications
- Aluminium windows & doors
- Curtain wall systems
- Structural glazing
- Skylights
- Glass partitions
- Shopfront glazing
- Facade systems
- Industrial glazing
Tax Classification
- HSN Code
- 4008
- GST
- 18%
Enquire about Glazing Rubber Profiles
Tell us the section, hardness and quantity you need. Our team will come back to you with a firm rate and lead time within one working day.
