Railway Windows & Door Rubber Profiles
Precision-extruded EPDM sealing profiles for railway coach and metro window/door glazing, retention, vibration isolation and weather protection.
Temperature Resistant
Specified Hardness
Weather Resistant
Made To Your Requirement

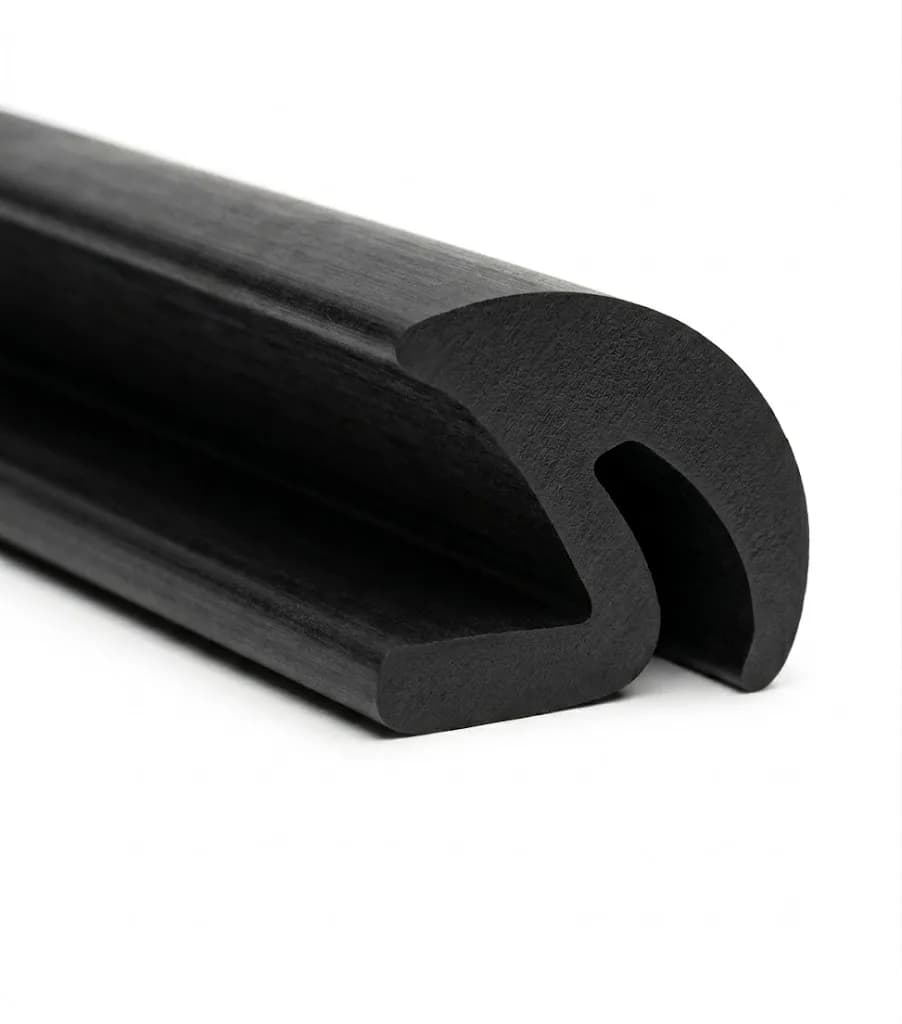

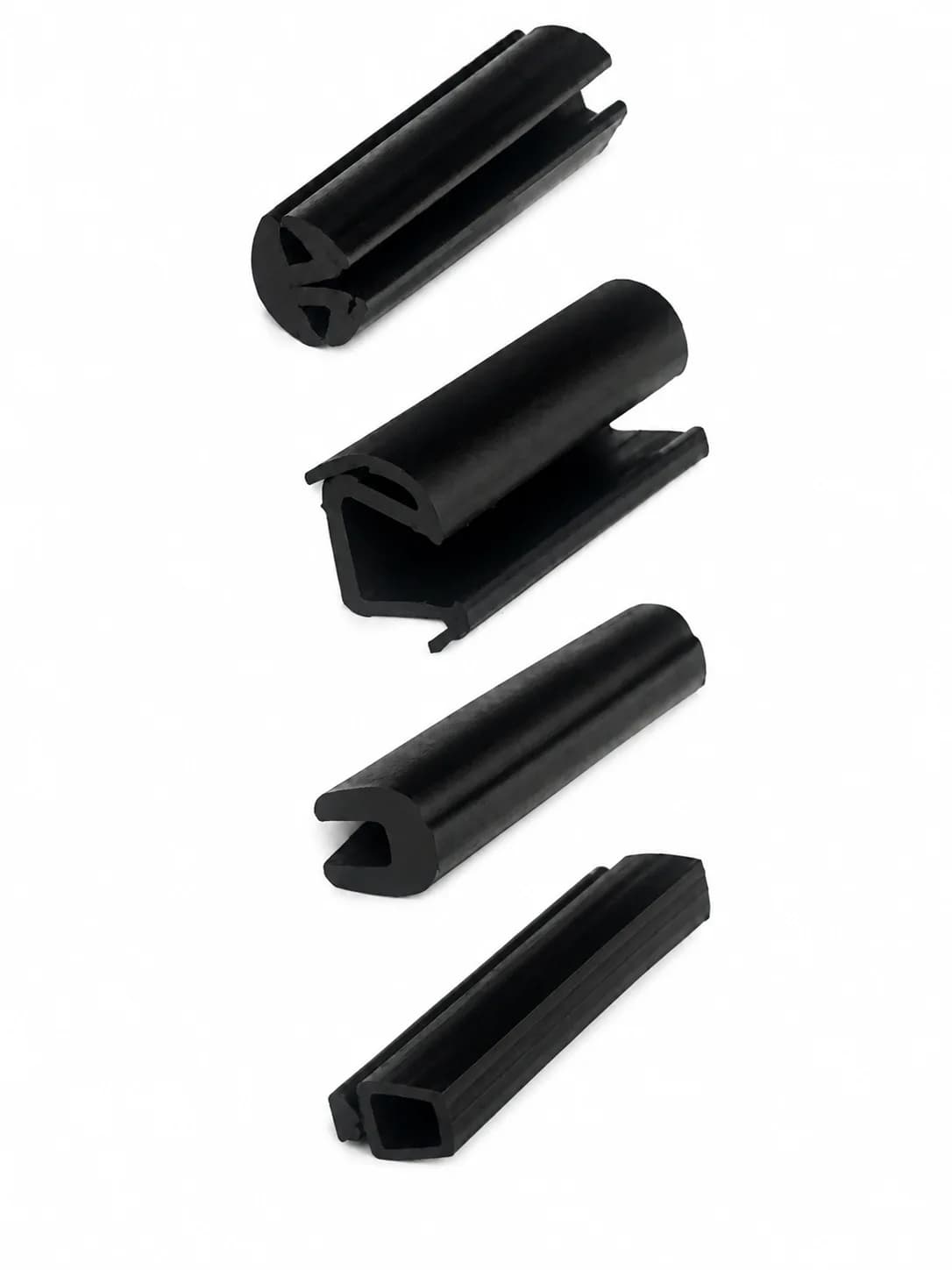

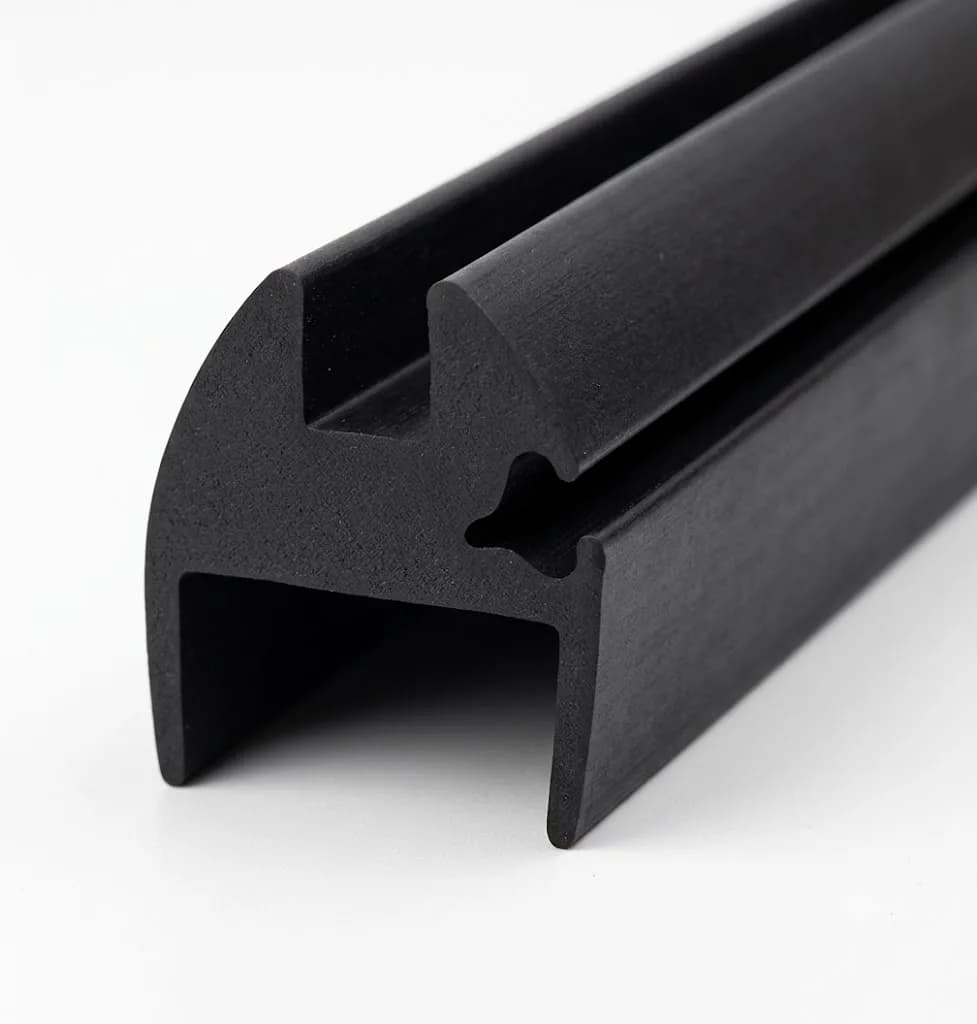

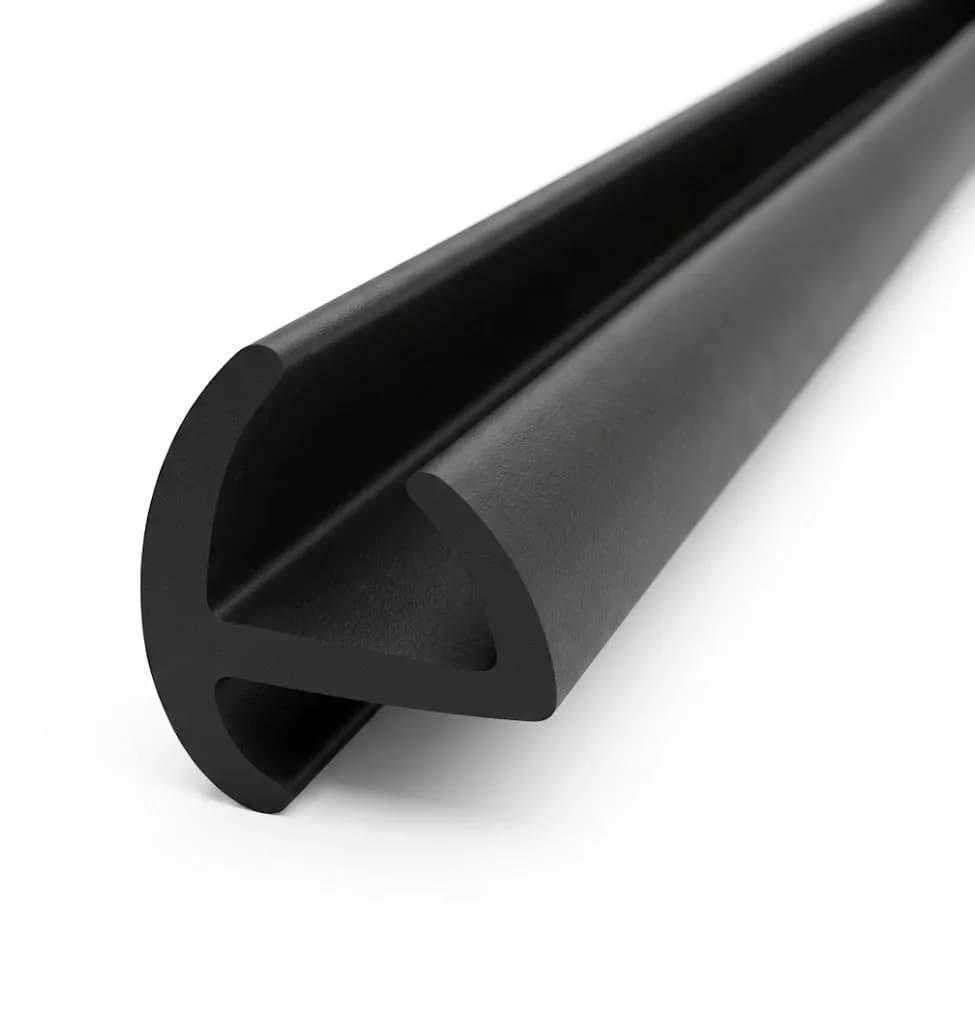

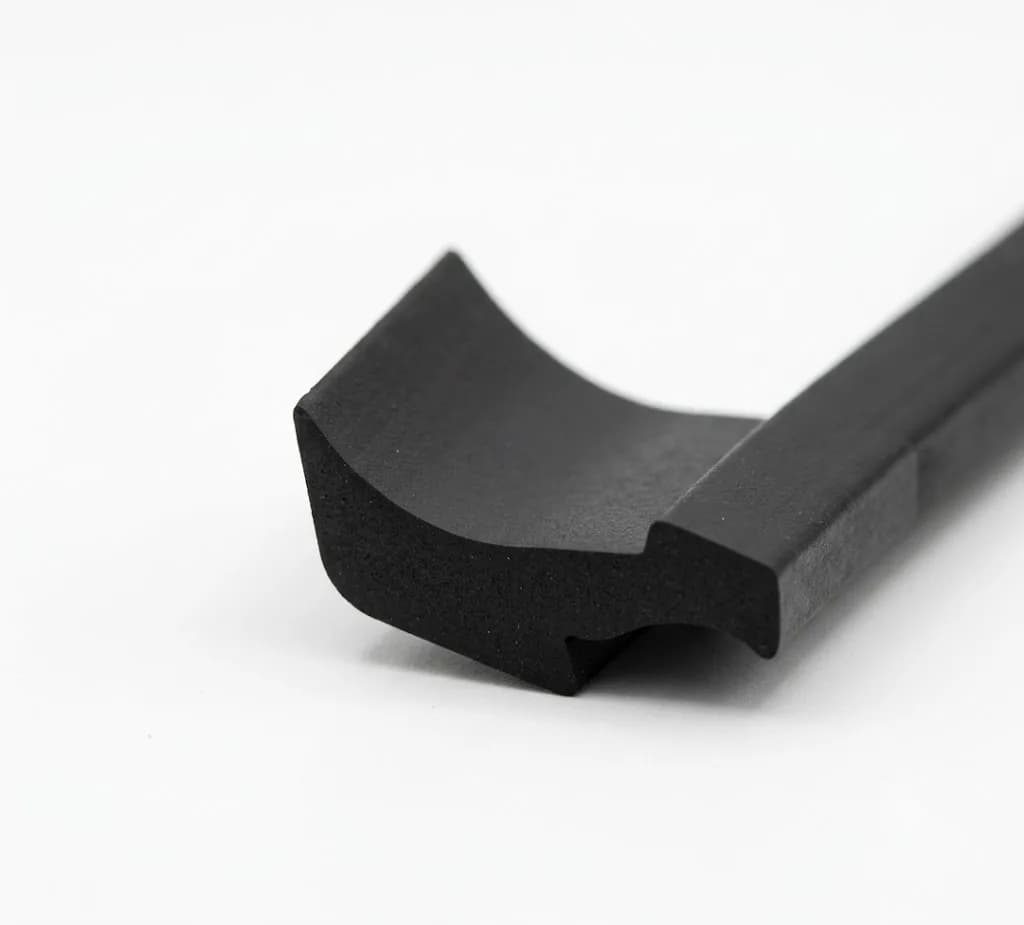

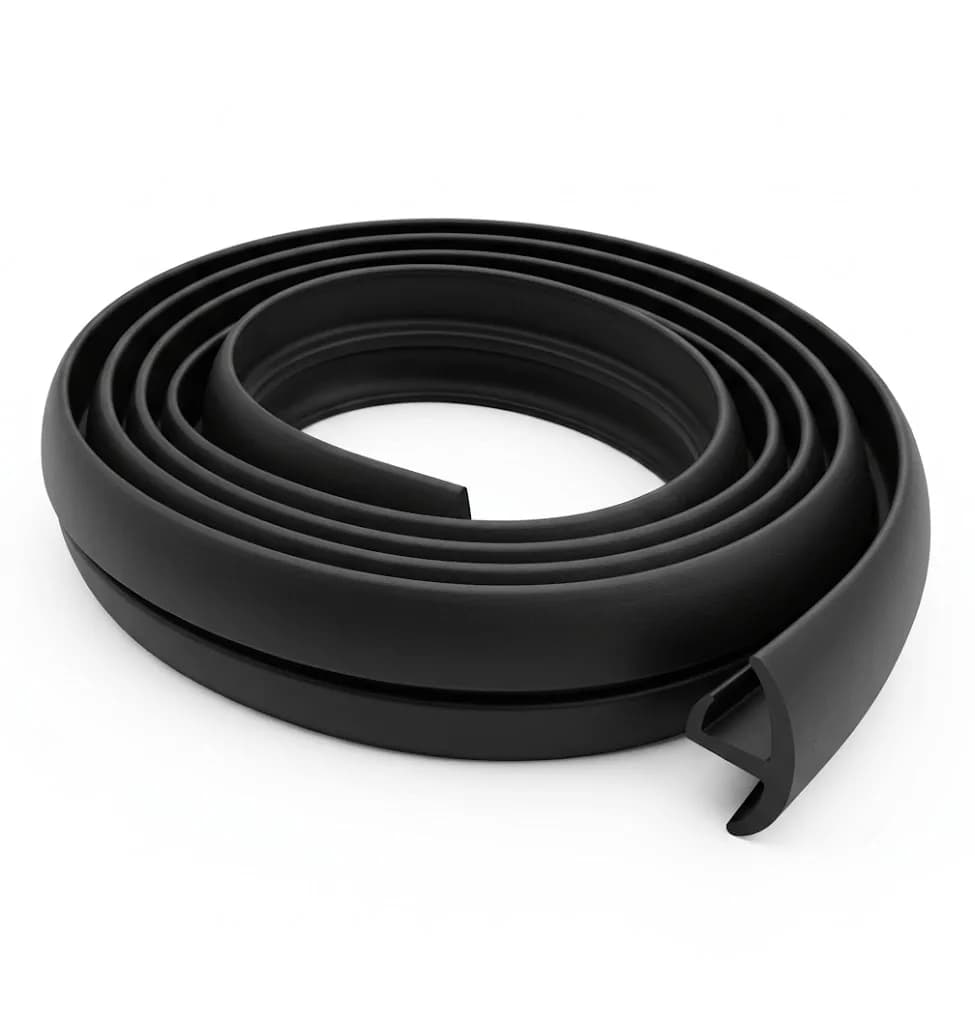

The image shows one example from this range. We manufacture to the size, shape, hardness and colour you need — send us a drawing or a sample piece and we will match it.
Product Specifications
Material
- Material
- EPDM
- Process
- Continuous extrusion
Physical properties
- Hardness
- 60+/-5 Shore A
- Density
- 1.6-2.2 g/cm3
- Tensile
- >=10 MPa
- Elongation
- >=300%
- Compression Set
- <=25%
Performance
- Operating Temp
- -40 to 120C
- UV/Ozone/Weather/Water Resistance
- Excellent
Specifications are typical values for the standard compound and are not a guarantee of performance in your application. Tolerances, hardness and colour can be adjusted to your requirement — please confirm critical values with our technical team before ordering.
Applications
- Metro rail coaches
- Passenger railway coaches
- High-speed trains
- Locomotive cabins
- Driver cab windows
- Internal partitions
- Emergency exit windows
- Equipment access doors
Tax Classification
- HSN Code
- 4008
- GST
- 18%
Enquire about Railway Windows & Door Rubber Profiles
Tell us the section, hardness and quantity you need. Our team will come back to you with a firm rate and lead time within one working day.
