Architectural/Aluminium Section Rubber Profiles
Precision-extruded elastomeric profiles that fit aluminium channels/frames, providing sealing, cushioning, glazing retention and weather protection.

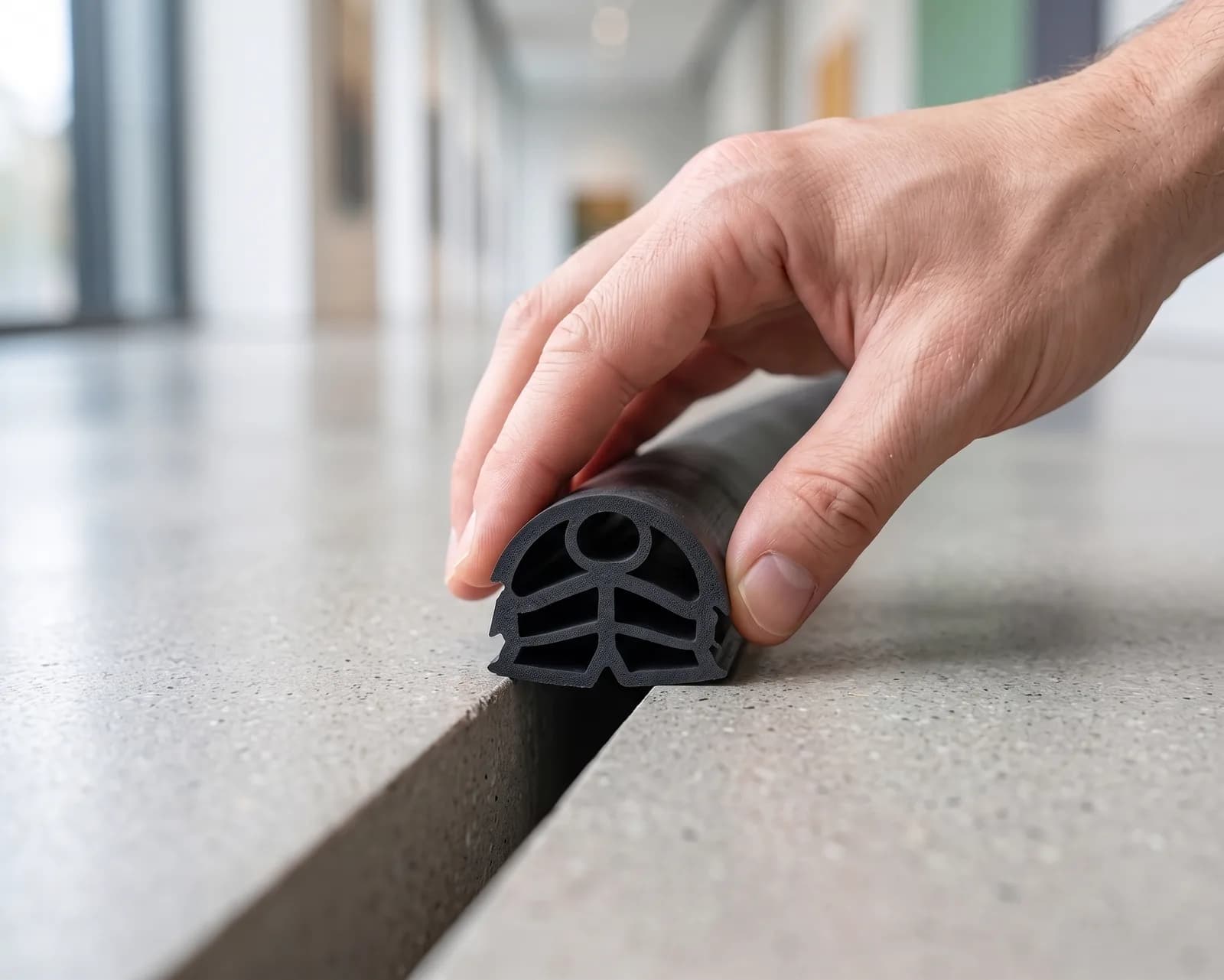

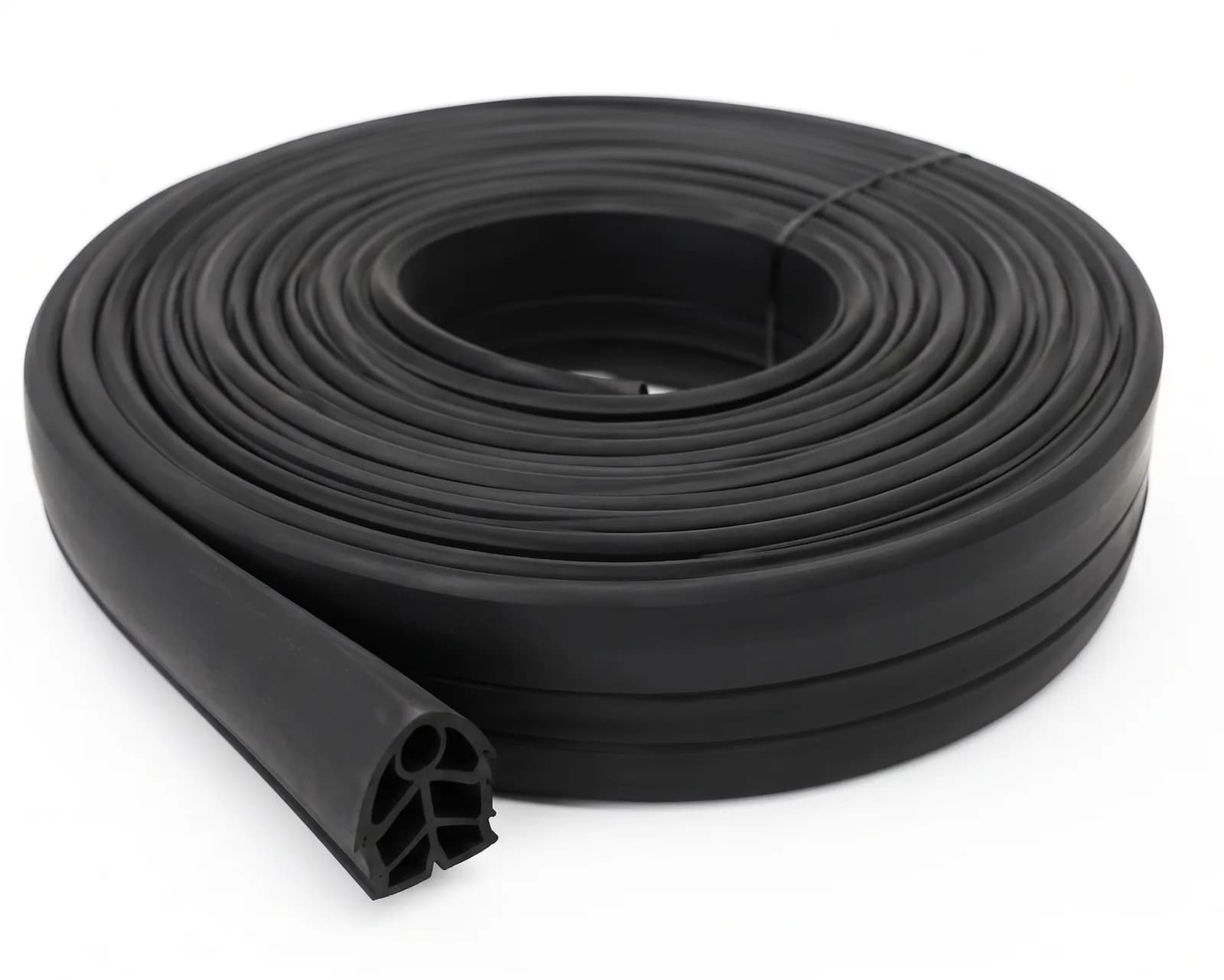

EPDM Expansion Joint Rubber Profile
Hollow EPDM expansion joint seal with internal reinforcing webs that accommodates cyclic expansion/contraction while maintaining a durable watertight seal.
Temperature Resistant
Specified Hardness
Weather Resistant
Made To Your Requirement
The image shows one example from this range. We manufacture to the size, shape, hardness and colour you need — send us a drawing or a sample piece and we will match it.
Product Specifications
Material
- Material
- EPDM (ASTM D2000)
- Process
- Continuous extrusion
Physical properties
- Hardness
- 60+/-5 Shore A
- Density
- 1.6-2.0 g/cm3
- Tensile
- >=10 MPa
- Elongation
- >=300%
- Compression Set
- <=25%
- Tear Strength
- >=25 kN/m
Performance
- Operating Temp
- -40 to 120C
- UV/Ozone/Water Resistance
- Excellent
Specifications are typical values for the standard compound and are not a guarantee of performance in your application. Tolerances, hardness and colour can be adjusted to your requirement — please confirm critical values with our technical team before ordering.
Applications
- Bridge expansion joints
- Building movement joints
- Parking structures
- Tunnels & underground structures
- Industrial floors
- Precast concrete joints
- Water-retaining structures
- Airport pavements
Tax Classification
- HSN Code
- 4008
- GST
- 18%
Enquire about EPDM Expansion Joint Rubber Profile
Tell us the section, hardness and quantity you need. Our team will come back to you with a firm rate and lead time within one working day.
